Main Features
Servo drive, servo stretching, servo film feeding.
Side mold changing device, equipped with an automatic mold changing car device on the side of the equipment, which can automatically install
molds on the side, and the chain rail will automatically retreat during side mold changing, making mold replacement more convenient and safe, especially suitable for automatic production lines In the case of production, it is possible to achieve mold change operations without moving the automation equipment in front of the molding equipment, realize rapid mold change, reduce labor waste, and improve production efficiency.
The die table opening and closing adopts hydraulic five-point opening, adopts servo motor acceleration and deceleration machine. stable punching and shearing, low noise, sanitation and energy saving.
The temperature control system adopts single-point temperature control of the tiles, the temperature is accurate, and there is no temperature control meter or temperature control module. Using PLC direct control, single-point precise temperature control, providing stable and accurate temperature for product molding, making product molding stable and improving production efficiency.
Lower mold servo drive
Technical Parameters

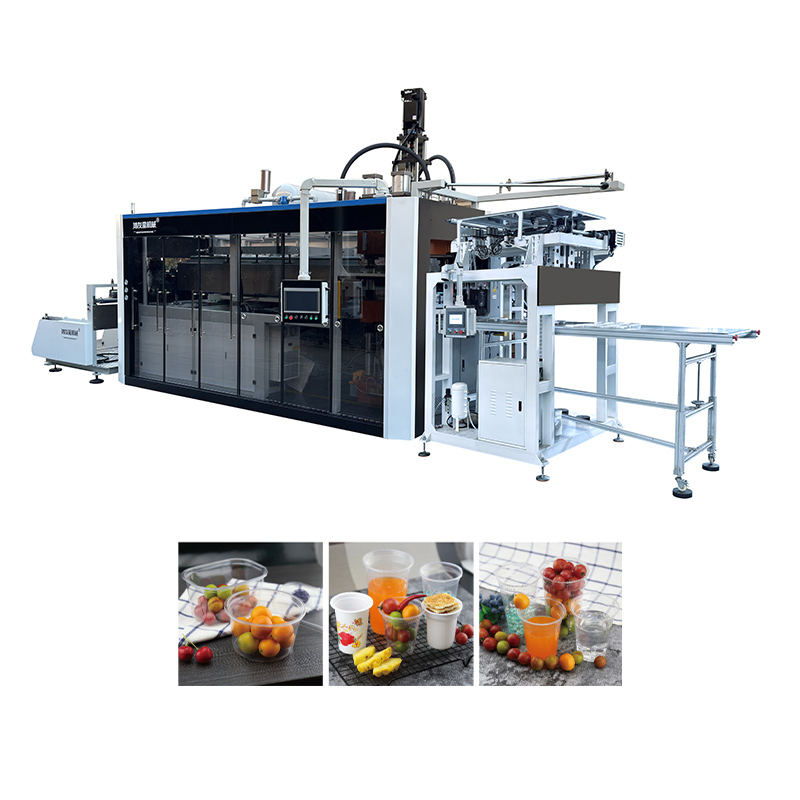

Full Servo Motor Drive Cup/Lid/Bowl Thermoforming Machine
|
Model
|
HYX-730
|
HYX-750
|
HYX-850
|
Suitable material
|
PPPS、PET、PLA、HIPS、(degraded material) etc
|
Sheet thickness
|
0.3-2.5mm
|
Sheet width
|
730mm
|
750mm
|
850mm
|
Max. Forming area
|
730x420mm
|
750x520mm
|
850x560mm
|
Max. Forming depth
|
≤180mm
|
≤180mm
|
≤180mm
|
Clamping stroke
|
220mm
|
Capacity
|
≤30shots/minute
|
Heating power
|
41.3kw
|
49.8kw
|
56kw
|
Main motor power
|
11kw
|
15kw
|
15kw
|
Servo motor for stretching
|
7.5kw
|
7.5kw
|
11kw
|
Sheet feeding power
|
4.4kw
|
4.4kw
|
5.5kw
|
Power supply
|
380V/50HZ
|
Air pressure
|
0.6-0.8Mpa
|
Air consumption
|
3200~4500 L/min
|
4500~6000 L/min
|
4500~6000 L/min
|
Water consumption
|
40-45L/min
|
40-60L/min
|
40-60L/min
|
Dimensions
|
4500x1840x2500mm
|
4500x1840x2500mm
|
4903x2266x3345mm
|
Weight
|
7000kgs
|
8000kgs
|
11000kg
|
